Product Overview

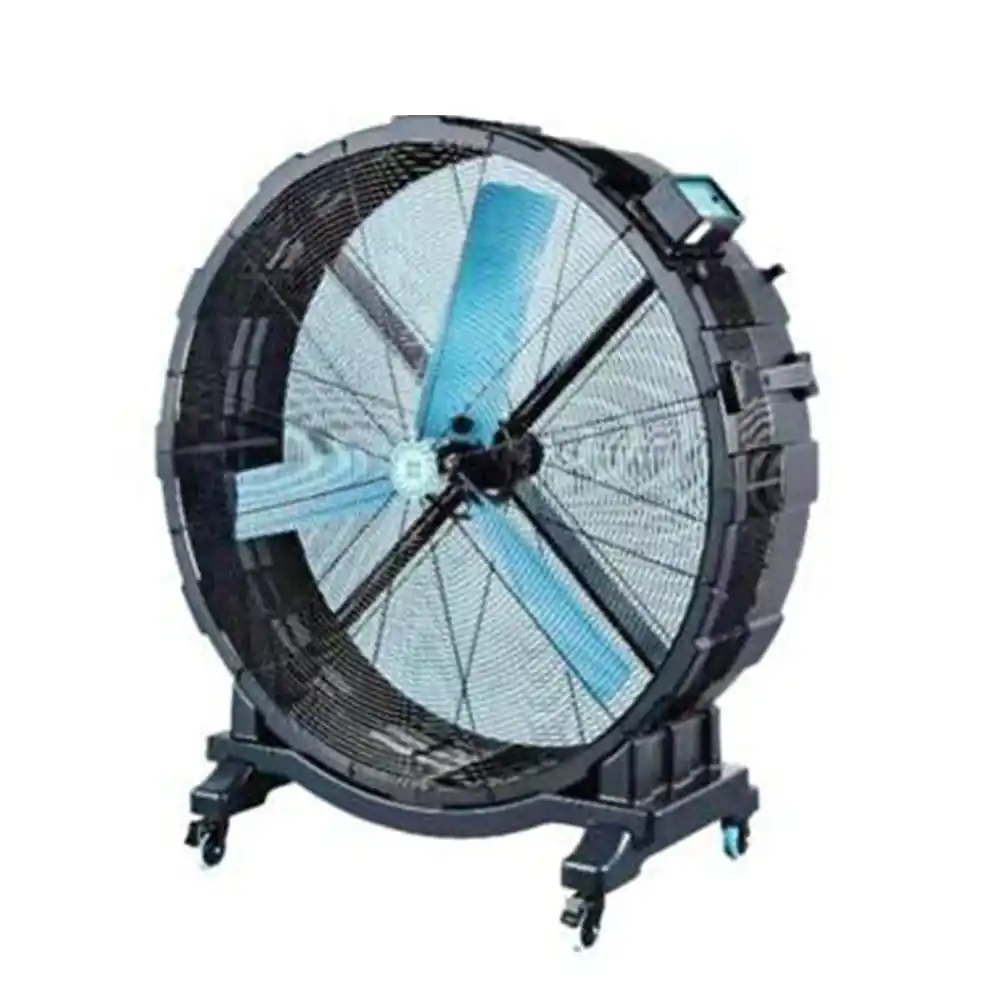

This industrial standing fan is designed for high‑volume air circulation in warehouses, production areas, workshops, and large indoor facilities where ventilation and heat dispersion are required. The large‑diameter design supports effective airflow distribution across wide floor areas.
The fan is suitable for both continuous operation and project‑based deployment in industrial environments where flexible positioning and consistent airflow performance are necessary.
Category & Classification
- Category: Industrial Equipment & Machinery
- Sub‑Category: Industrial Ventilation & Air Circulation
Industrial Application Overview
Industrial standing fans are widely used in factories, warehouses, logistics facilities, workshops, and commercial buildings to improve air movement and support heat management where fixed ventilation systems may be insufficient or require supplementary airflow.
The product is commonly specified by facility managers, operations teams, contractors, and OEMs for recurring ventilation needs, temporary cooling during peak operations, and project‑based use during maintenance, retrofitting, or layout reconfiguration. Reliability, airflow volume, and operational stability are key considerations in such environments.
Functional Features
Key functional characteristics include:
- Designed for continuous operation under industrial duty cycles
- Large‑diameter fan blades generate high airflow volume
- Multiple speed settings support airflow adjustment
- Floor‑standing configuration enables flexible placement
- Integrated castor wheels allow repositioning within facilities
- Suitable for large open indoor and controlled industrial spaces
Model Comparison & Performance Specifications
| Model |
Power Supply |
Rated Power |
Maximum Speed |
Air Volume |
Recommended Floor Area |
Fan Diameter |
Overall Dimensions |
| G115 |
220V / 50Hz |
400 W |
600 r/min |
22,000 m³/h |
150–250 m² |
1.1 m |
1150 × 550 × 1280 mm |
| G130 |
220V / 50Hz |
500 W |
500 r/min |
30,000 m³/h |
200–300 m² |
1.25 m |
1300 × 550 × 1430 mm |
| G150 |
220V / 50Hz |
600 W |
100–480 r/min | Material & Construction
The fan housing, blade assembly, and protective guard are constructed from metal components to provide structural rigidity and durability in industrial environments. The motor assembly is designed to support prolonged operation, while the wide base and wheel configuration enhance overall stability.
This construction supports long‑term performance and helps reduce maintenance requirements in demanding facility conditions.
Procurement & Supply Support
This product supports procurement and operational requirements including:
- B2B procurement and bulk sourcing for industrial facilities
- OEM integration for ventilation and airflow solutions
- Project‑based supply for temporary or seasonal cooling needs
- Scheduled or recurring supply arrangements for facility operations
Supply planning is aligned with airflow capacity requirements, coverage area, and site layout considerations.
Technical Information
- Product Type: Industrial standing fan
- Power Supply: 220V / 50Hz
- Power Options: Approx. 400W / 500W / 600W / 1100W (model dependent)
- Air Volume (Max): Approx. 22,000 – 56,000 m³/h
- Fan Diameter: Approx. 1.1 m / 1.25 m / 1.5 m / 1.8 m
- Mounting / Installation: Floor‑standing, mobile with castor wheels
- Operating Environment: Warehouses, factories, workshops, and large indoor facilities
Typical Applications
This product is suitable for:
- Warehouse and logistics centre ventilation
- Factory floor air circulation
- Workshop cooling and heat dispersion
- Temporary ventilation during maintenance works
- Large indoor facility airflow management
- Production and assembly area cooling support
Related Category
Need additional ventilation or airflow solutions for large facilities? Explore our/product-category/industrial-ventilation-air-circulation/Industrial Ventilation & Air Circulationfor compatible industrial applications.
Regulatory Reference
Designed to support safe workplace ventilation and heat management practices aligned with guidance issued by thehttps://www.wshc.sgWorkplace Safety and Health Council (WSHC) Singapore.
Compliance & Notes
Product specifications and suitability should be reviewed against site size, airflow requirements, electrical supply conditions, and applicable workplace safety guidelines prior to installation or operation.
